Facilities and Equipment

Facilities & Equipment

CNC TURNING

CNC Turning & Machining

CNC TURNING

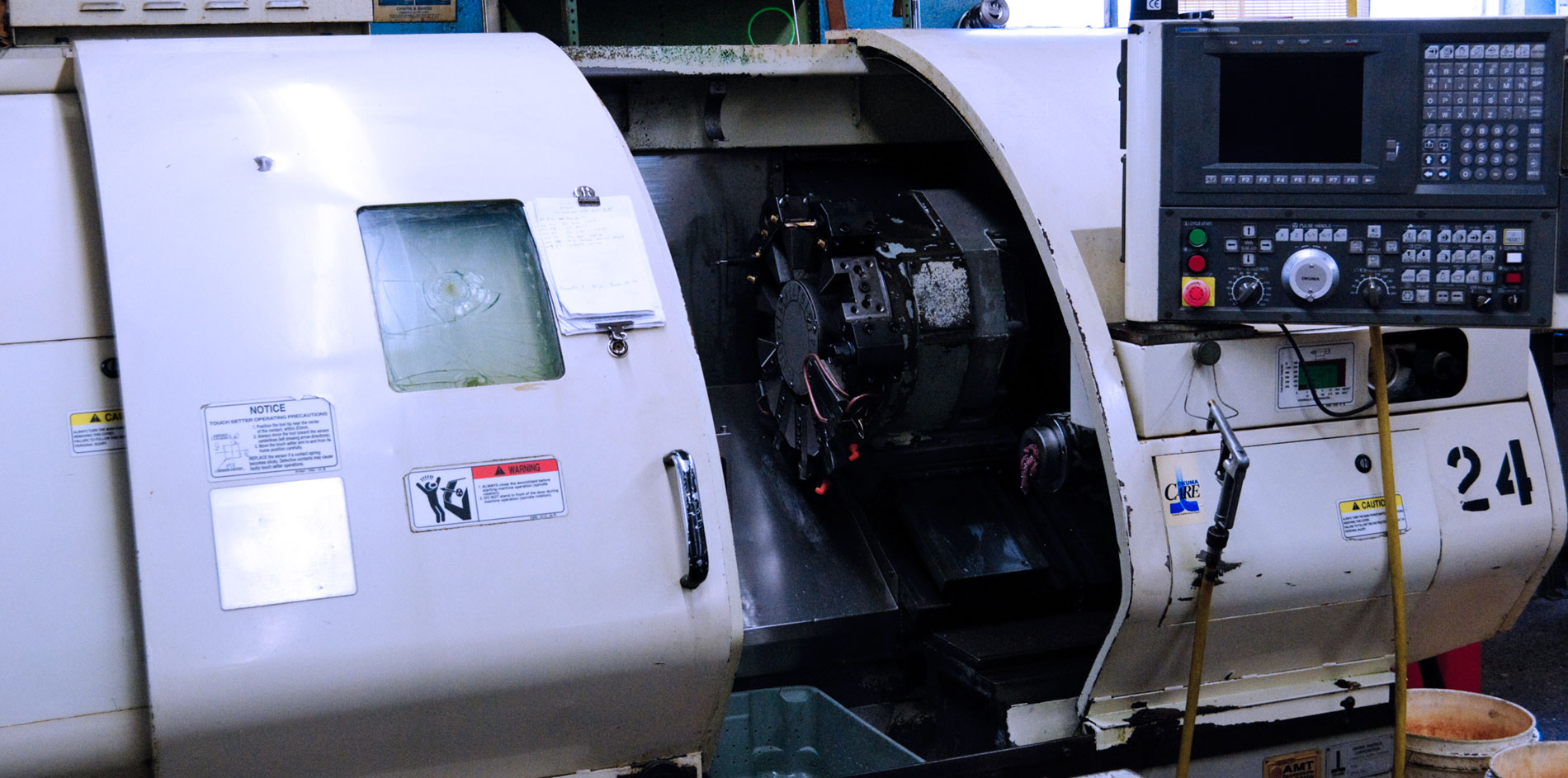

  • 2 Okuma Crown CNC Lathe - Capacity: 2 1/2" bar & 10" Chuck
  • 1 Okuma Cadet CNC Lathe -Capacity: 1 3/4" bar & 8" Chuck
  • 2 KIA CNC Lathes -Capacity: 1 3/4" bar & 6" Chuck
  • 2 OmniTurn CNC Lathes w/ 3rd Programmable Axis -Capacity: 1 1/16" bar & 4" Chuck
  • 2 Hardinge HCT Lathes w/ OmniTurn 2 Axis CNC Programmable Tables
  • 1 Hardinge HSC Lathe w/ OmniTurn 2 Axis CNC Programmable Tables
CNC SWISS
  • 2 Tsugami NP-17 CNC - 5/8" bar capacity w/ Off-center & Side Mill/Drill Live Tooling
  • 1 Tsugami NP-11 CNC - 7-16" bar capacity w/ Off-center & Side Mill/Drill Live Tooling

CNC MACHINING

  • 2 Fadal VMC - 15 CNC Vertical Machining Center with 4th Axis & 8" Rotary Table
  • 1 Fadal VMC - 15XT CNC Vertical Machining Center with 4th Axis & 8" Rotary Table
  • 1 Ares-Seiki R560 High Speed Mill/Drill/Tap Center with Kitagawa Programmable Rotary Indexer
  • 1 Supermax VMC - 40 3-Axis VMC with Haas Programmable Rotary Indexer

Precision Machining

SWISS AUTOMATICS MILLING
  • 1 Tornos MR 32 - 1 1/4" capacity
  • 7 Tornos RR 20 - 3/4" capacity
  • 5 Tornos R 125 - 1/2" capacity
  • 4 Tornos R 10 - 7/16" capacity
  • 5 Tornos M 7 - 9/32" capacity
  • Pick-up, Back-slot, and Cross-drill Capabilities
  • Brown & Sharpes & Multispindles Available
  • 5 Bridgeport Vertical Milling Machines
  • 3 Sundstrand #00 Automatic Millers
TURNING THREAD ROLLING
  • 2 Hardinge DSM Turret Lathes
  • 4 Shaublin Precision Production Lathes
  • 3 Hartford Special A-190
  • 1 Waterbury Farrel #20 Horizontal

Secondary Machining

GRINDING DRILLING
  • 2 Van Norman Centerless Grinders
  • 2 Brown & Sharpe Surface Grinders
  • 1 Sanford Finishing Surface Grinder
  • 1 Walker-Turner Multi-Head Drill Press
  • 1 Olivetti High Speed Drill Press

Quality Control Instruments & Gauging

  • 1 Sprint Visioneer 200x 3 Axis Video Microscope
  • Mitutoyo SPC Microprocessor - Output to:
    • Assorted Mitutoyo Digital Dial Indicators
    • Assorted Mitutoyo Digital Micrometers
    • Assorted Mitutoyo Digital Dial Verniers
  • 1 Jones & Lamson 14" Optical Comparator 10x, 20x, and 50x lenses & Surface Projection
  • 1 Nixon 12" Optical Comparator 10x lens w/ Surface Projection
  • 1 Nixon 30x Lens Toolmaker Microscope w/ 2 Axis Micrometer Table
  • 1 Pratt & Whitney 6" Electrolimit Indicator - Accuracy to /-00005
  • 1 Mitutoyo Profilometer

Deburring & Finishing

  • 1 Sweco Vibra-Finisher
  • 1 Adjusta-Vibe Miniature Vibrating Finisher
  • 1 24" Sandblast & Glass Bead Finisher
  • 1 5-gal Ultrasonic Finisher/Cleaner
  • 2 Vibratory Tumblers
  • 2 Barrel Rolling Finisher
Miscellaneous Facilities
  • Component Assembly Capacity
  • Full Tool and Fixture Fabrication Capacity
  • 2 3-ton Benchmaster Broach Presses
  • 2 1-ton Benchmaster Broach Presses
Some Highlights
Dedication

Dedication

Our goal is to provide you with precision components that will eliminate needless downtime, flawed assemblies, and poor product quality

Full Capabilities

Full Capabilities

With over 10,000 square feet of manufacturing space and our in-house secondary facilities, PMI provides an integrated one-stop production network

Capacity

Capacity

We have the capacity and the facilities to meet any of your needs, from tooling design and fabrication to providing custom packaging and even design assistance
